- EPA Classification: 4WD Sport Utility Vehicle
- Fuel Economy Est-Combined (MPG): 26
- EPA Fuel Economy Est - City (MPG): 24
- EPA Fuel Economy Est - Hwy (MPG): 28
- Cold Cranking Amps @ 0° F (Primary): - TBD -
- Maximum Alternator Capacity (amps): - TBD -
- Total Cooling System Capacity (qts): - TBD -
- Base Curb Weight (lbs): 3651
- Dead Weight Hitch - Max Trailer Wt. (lbs): 1500
- Dead Weight Hitch - Max Tongue Wt. (lbs): 150
- Wt Distributing Hitch - Max Trailer Wt. (lbs): 1500
- Wt Distributing Hitch - Max Tongue Wt. (lbs): 150
- Suspension Type - Front: MacPherson Strut
- Suspension Type - Rear: 4-Link
- Shock Absorber Diameter - Front (mm): - TBD -
- Shock Absorber Diameter - Rear (mm): - TBD -
- Stabilizer Bar Diameter - Front (in): - TBD -
- Stabilizer Bar Diameter - Rear (in): - TBD -
- Brake Type: Pwr
- Brake ABS System: 4-Wheel
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness (in): 11.8 x - TBD -
- Rear Brake Rotor Diam x Thickness (in): 11.3 x - TBD -
- Front Tire Order Code: QEN
- Rear Tire Order Code: QEN
- Spare Tire Order Code: RJA

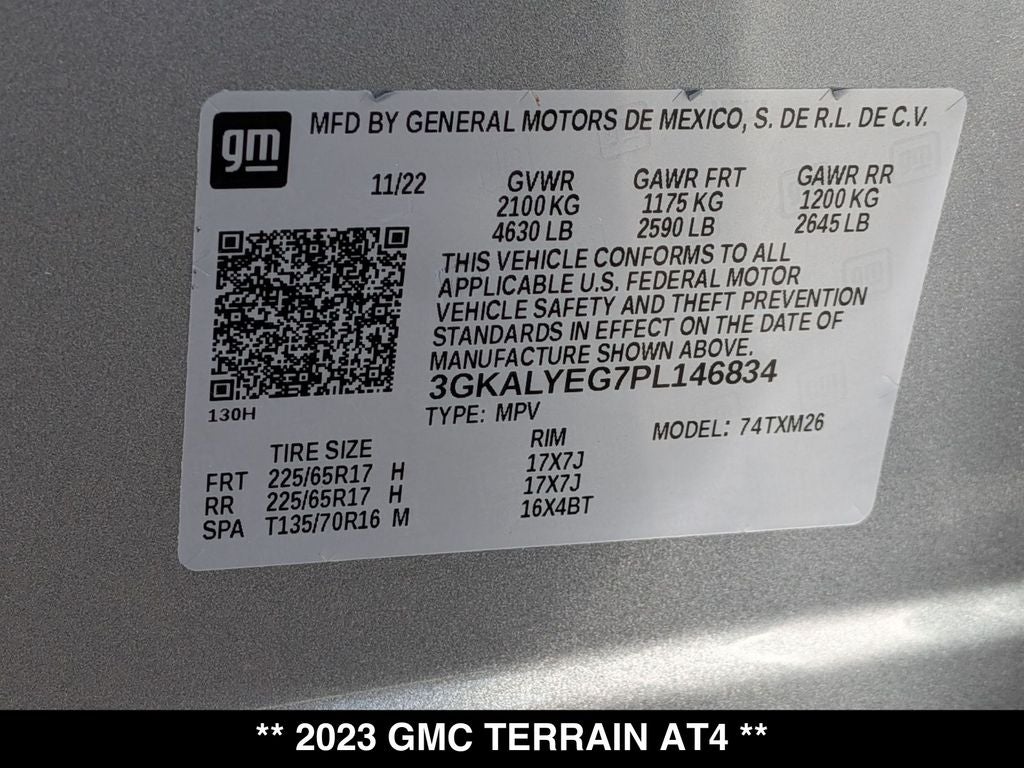

- Front Tire Size: P225/65R17
- Rear Tire Size: P225/65R17
- Spare Tire Size: T135/70R16
- Front Wheel Size (in): 19 x - TBD -

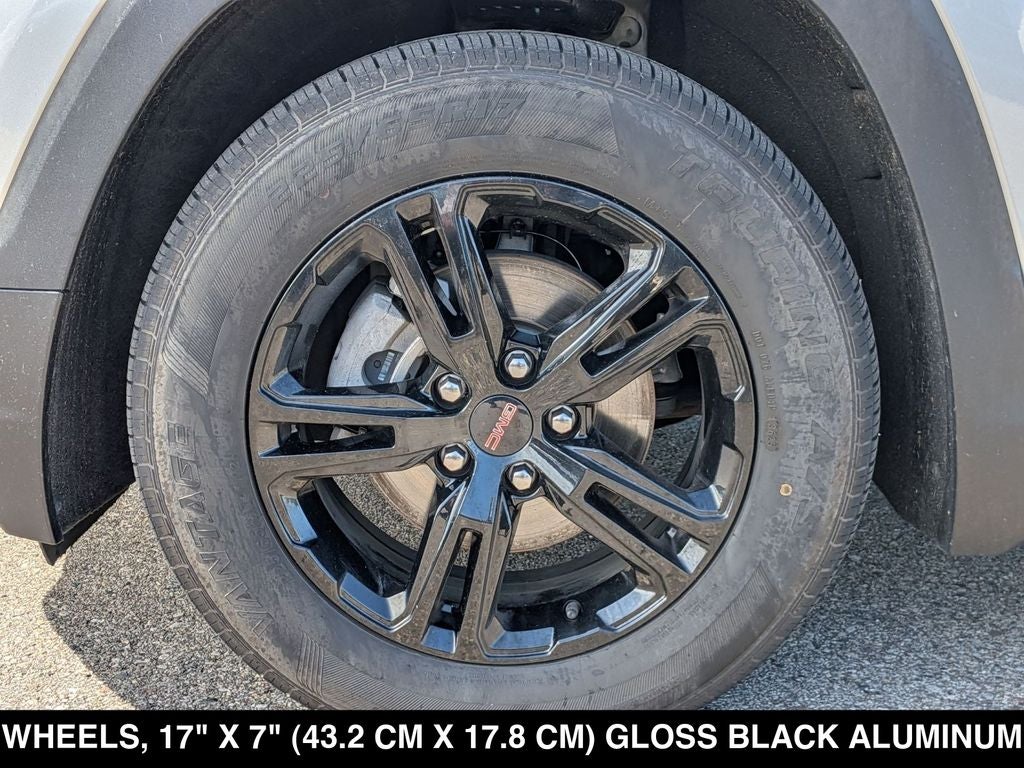

- Front Wheel Size (in): 17 x 7.0
- Rear Wheel Size (in): 19 x - TBD -
- Rear Wheel Size (in): 17 x 7.0
- Spare Wheel Size (in): 16 x - TBD -
- Front Wheel Material: Aluminum
- Rear Wheel Material: Aluminum
- Spare Wheel Material: Steel
- Steering Type: Electric Rack & Pinion
- Steering Ratio (:1), Overall: - TBD -
- Lock to Lock Turns (Steering): - TBD -
- Turning Diameter - Curb to Curb (ft): 37.4
- Turning Diameter - Wall to Wall (ft): - TBD -
- Fuel Tank Capacity, Approx (gal): 15.6
- Wheelbase (in): 107.3
- Length, Overall (in): 182.3
- Width, Max w/o mirrors (in): 72.4
- Height, Overall (in): 65.4
- Track Width, Front (in): 62.3
- Track Width, Rear (in): 62.5
- Min Ground Clearance (in): 7.90
- Rear Door Opening Height (in): - TBD -
- Rear Door Opening Width (in): - TBD -
- Liftover Height (in): - TBD -
- Cargo Area Length @ Floor to Seat 1 (in): - TBD -
- Cargo Area Length @ Floor to Seat 2 (in): - TBD -
- Cargo Area Width @ Beltline (in): - TBD -
- Cargo Box Width @ Wheelhousings (in): - TBD -
- Cargo Box (Area) Height (in): - TBD -
- Cargo Volume to Seat 1 (ft³): 63.3
- Cargo Volume to Seat 2 (ft³): 29.6
- Passenger Capacity: 5
- Passenger Volume (ft³): 103.2
- Front Head Room (in): 38.2
- Front Head Room (in): 40.0
- Front Leg Room (in): 40.9
- Front Shoulder Room (in): 57.2
- Front Hip Room (in): 54.4
- Second Head Room (in): 36.8
- Second Head Room (in): 38.5
- Second Leg Room (in): 39.7
- Second Shoulder Room (in): 55.6
- Second Hip Room (in): 51.8

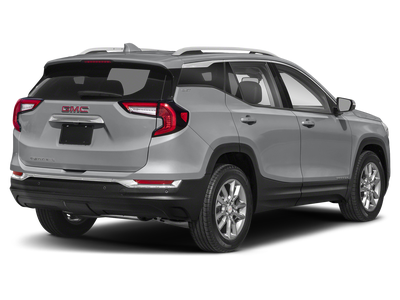

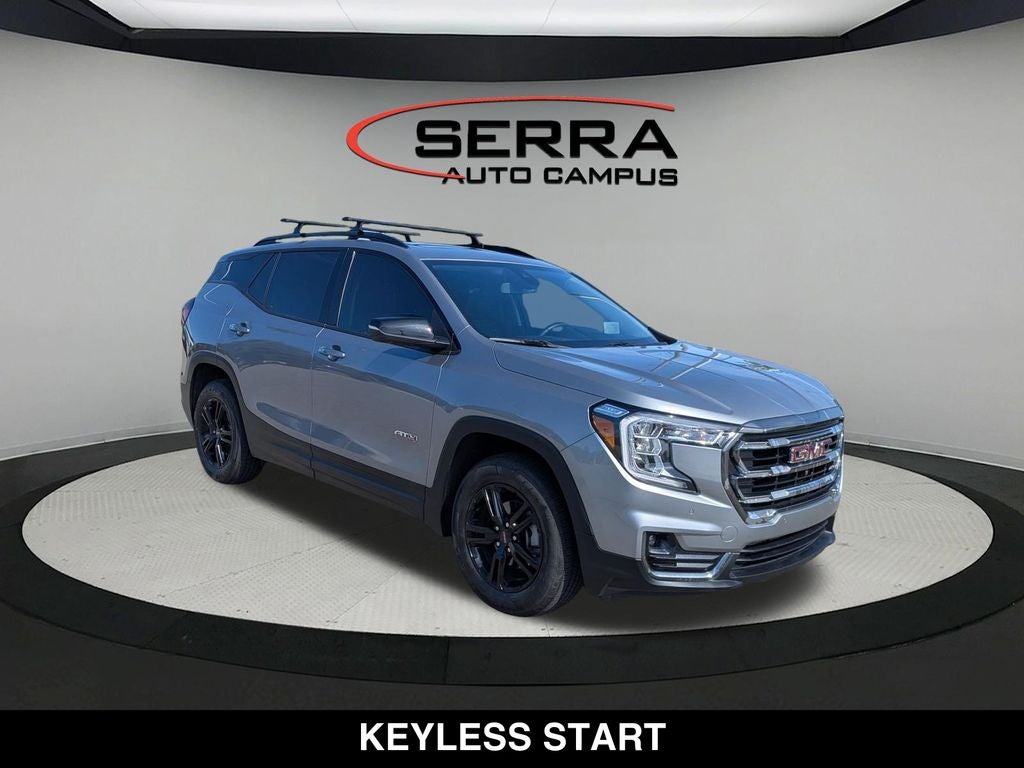

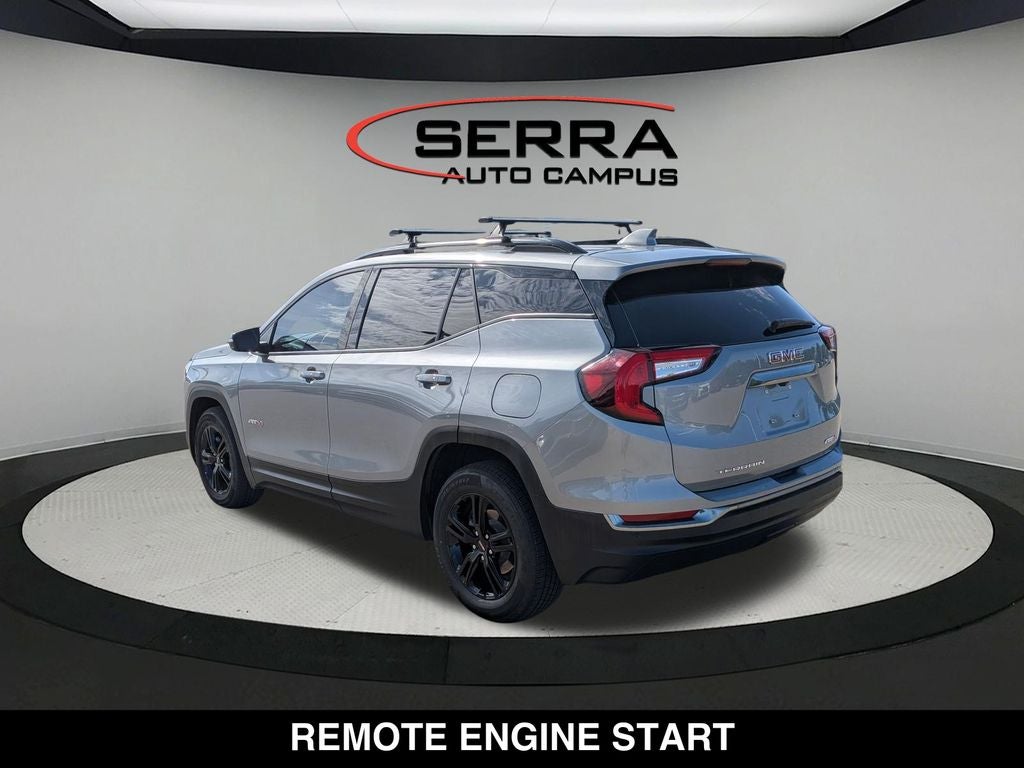

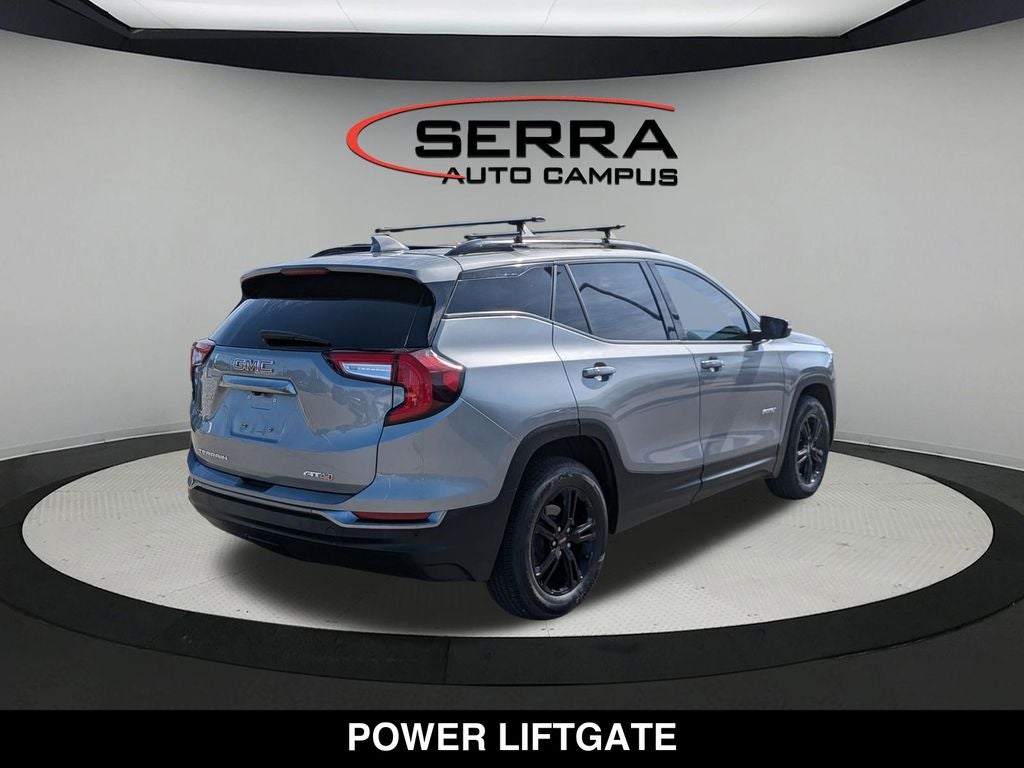

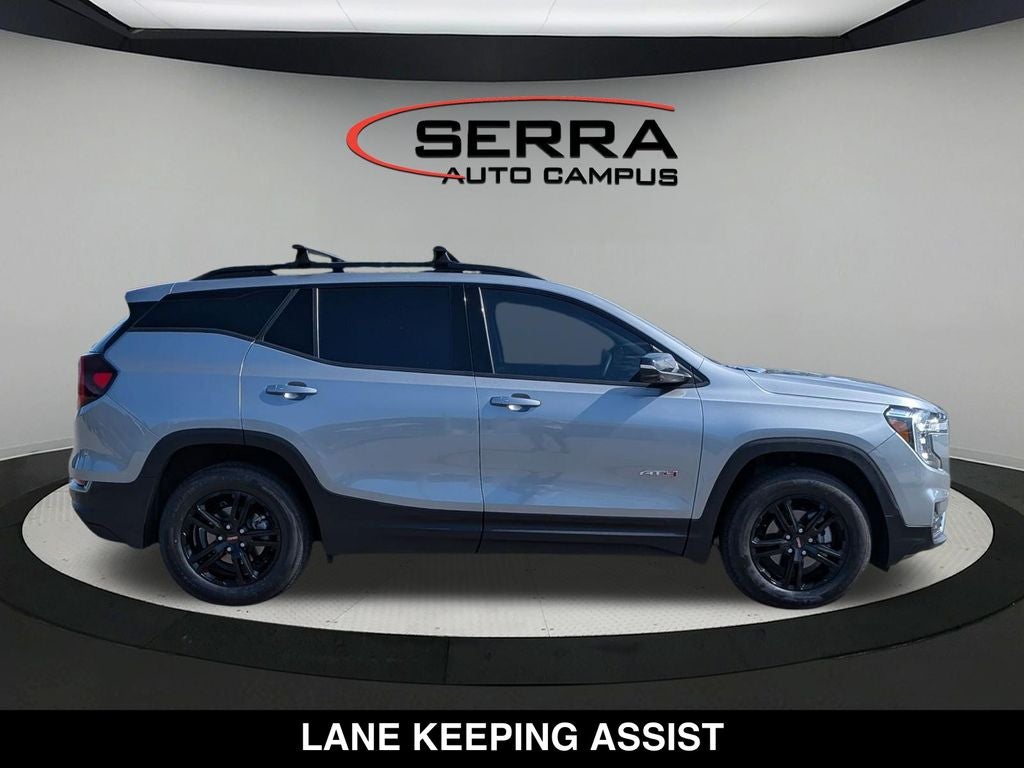

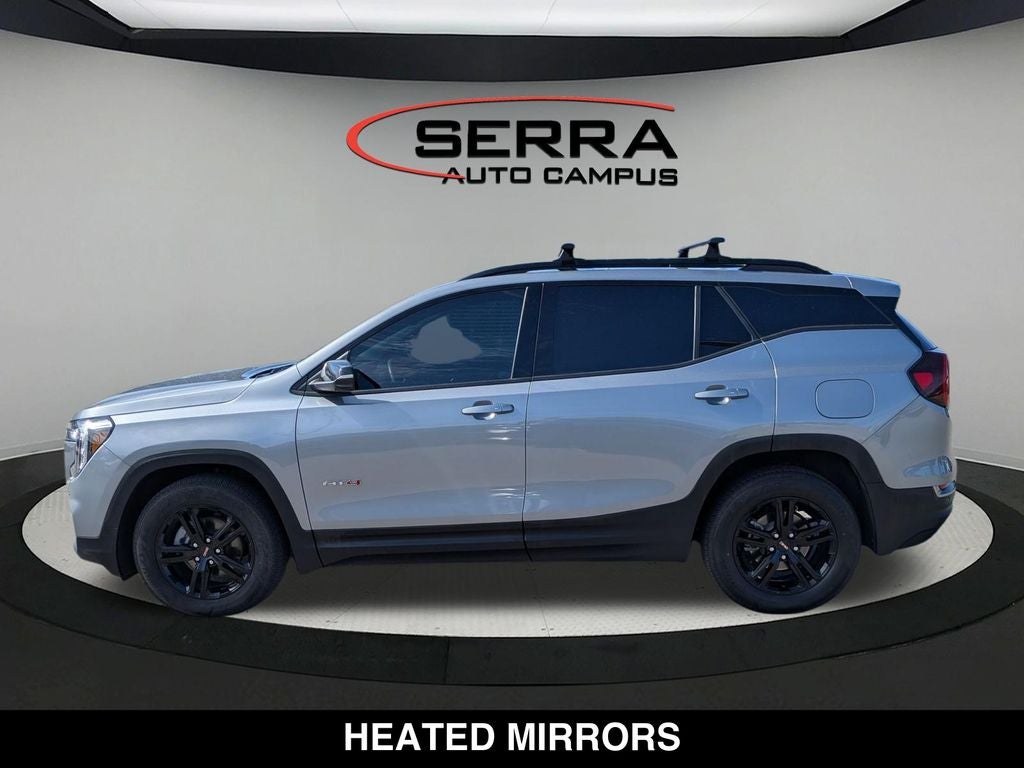

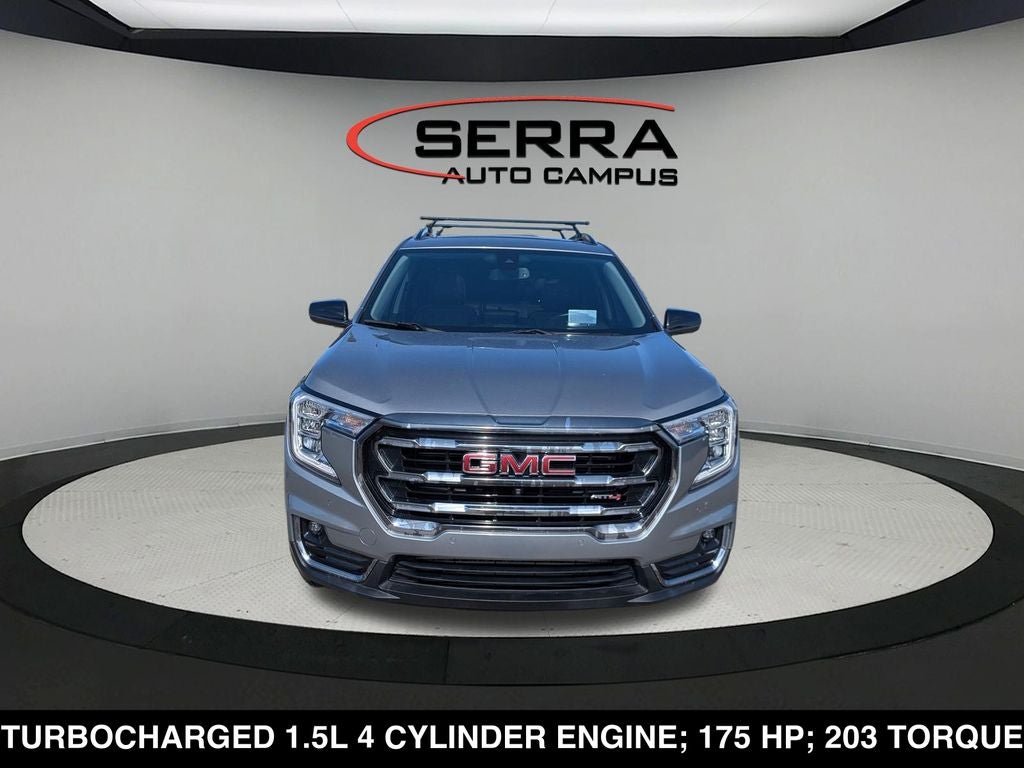

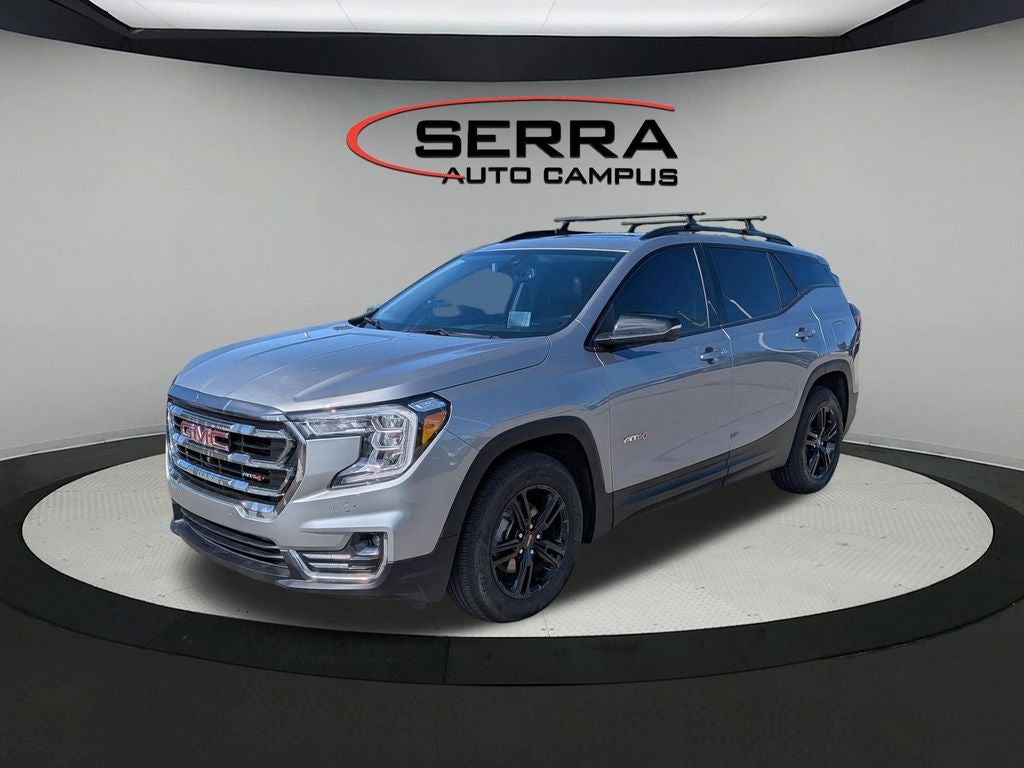

- Vehicle Name: GMC Terrain
- Body Style: Sport Utility
- Tons/yr of CO2 Emissions @ 15K mi/year: 6.8
